Trim Router Sled Kit
"I am a blind wood working and maker. The little money I have I utilize to get the tools that will make life easier. This router trim sled kit is so easy to put together I thought they made it with me in mind. Thank you for helping this blind veteran."
Do you have smaller slabs, cutting boards, or epoxy projects waiting to be flattened and finished? If so, this sled kit is the perfect solution for your shop.
Build your own compact router sled and achieve smooth, level results with your trim router. No planer or drum sander needed. Designed specifically for trim routers, this sled kit gives you precise control, excellent stability, and the flexibility to bring out the best in every project.
Made from durable 3/8" thick cast acrylic.

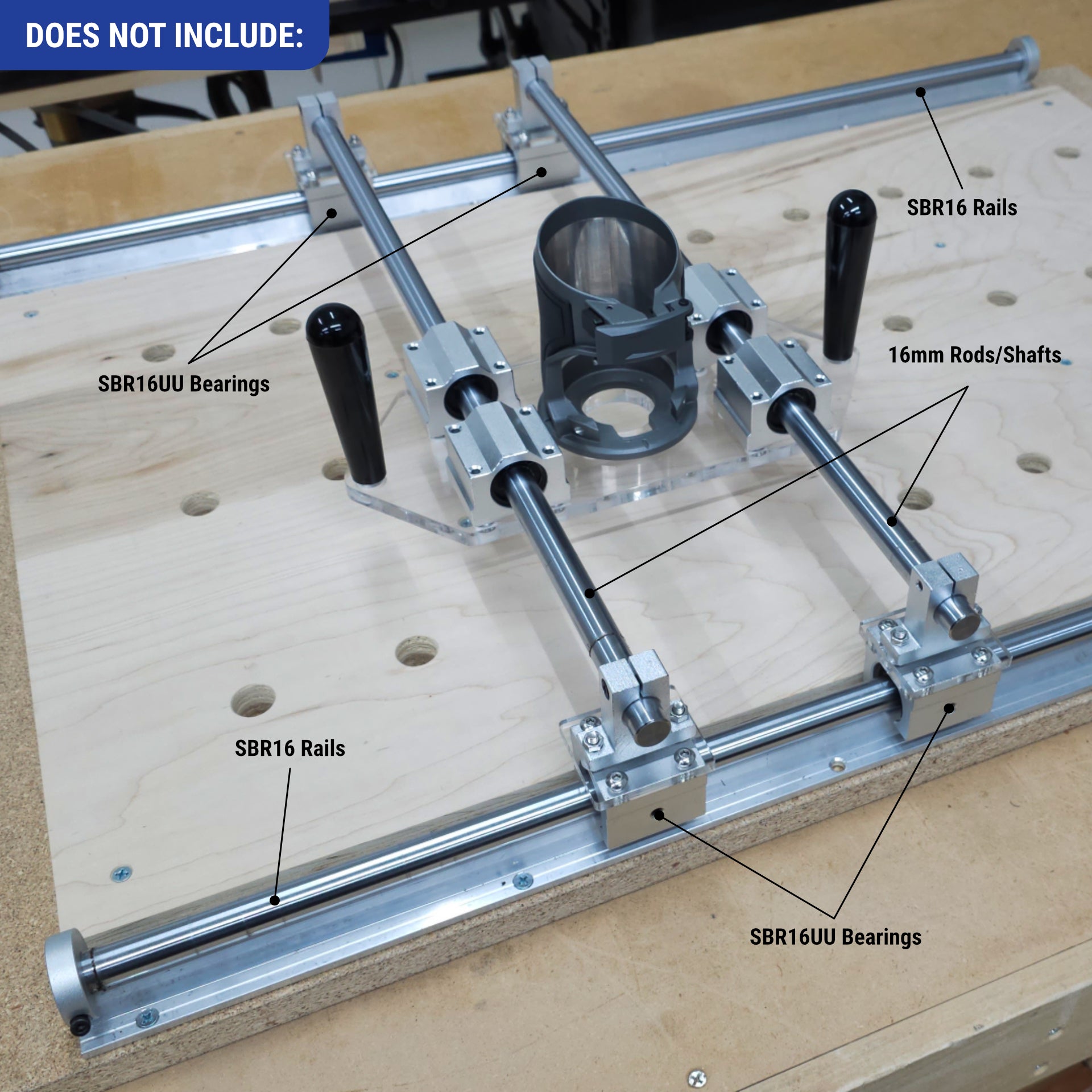

Additional Parts Required
You must order your own rods, rails, and bearings. We’ve linked below to recommended options to help get your search started:
- 4x SCS16 Bearings
- 2x 16mm Rods
- 4x SBR16UU Bearings
- 2x SBR16 Rails
- 1x - Sled Base Plate
- 2x - Support Bracket Mounting Plates
- 2x - 4” Handles
- 32x - Bearing Mounting Screws
- 8x - Support Bracket Mounting Screws and Nuts
- 1x - Loctite 242
Made from durable 3/8" thick cast acrylic
Every shop is different, that’s why we give you the flexibility to choose your own rods, rails, and bearings. We’ve linked below to recommended options:
- 4x SCS16 Bearings
- 2x 16mm Rods
- 4x SBR16UU Bearings
- 2x SBR16 Rails
- DeWalt DWP611 and DCW600B

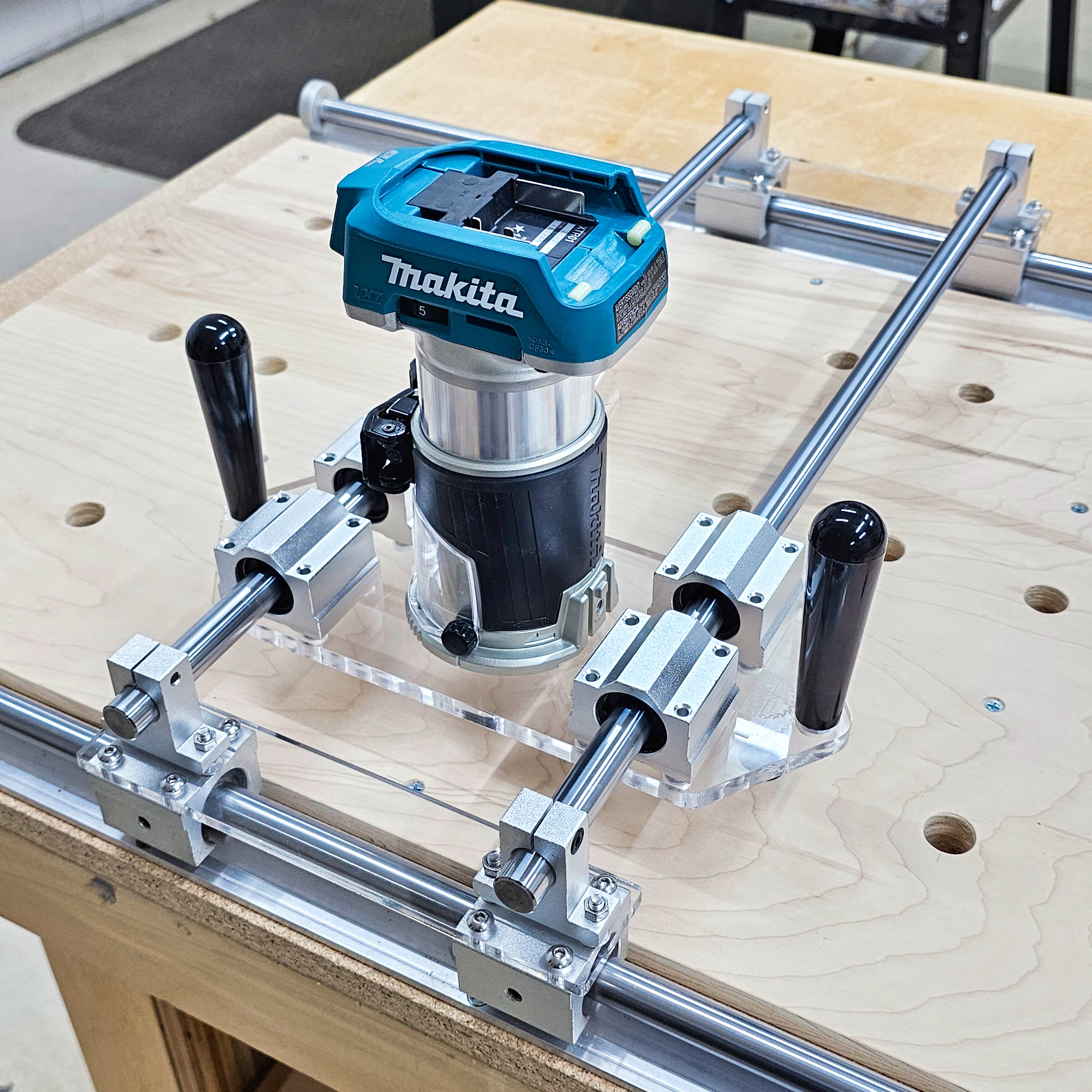

- Makita RT0701C and XTR01Z

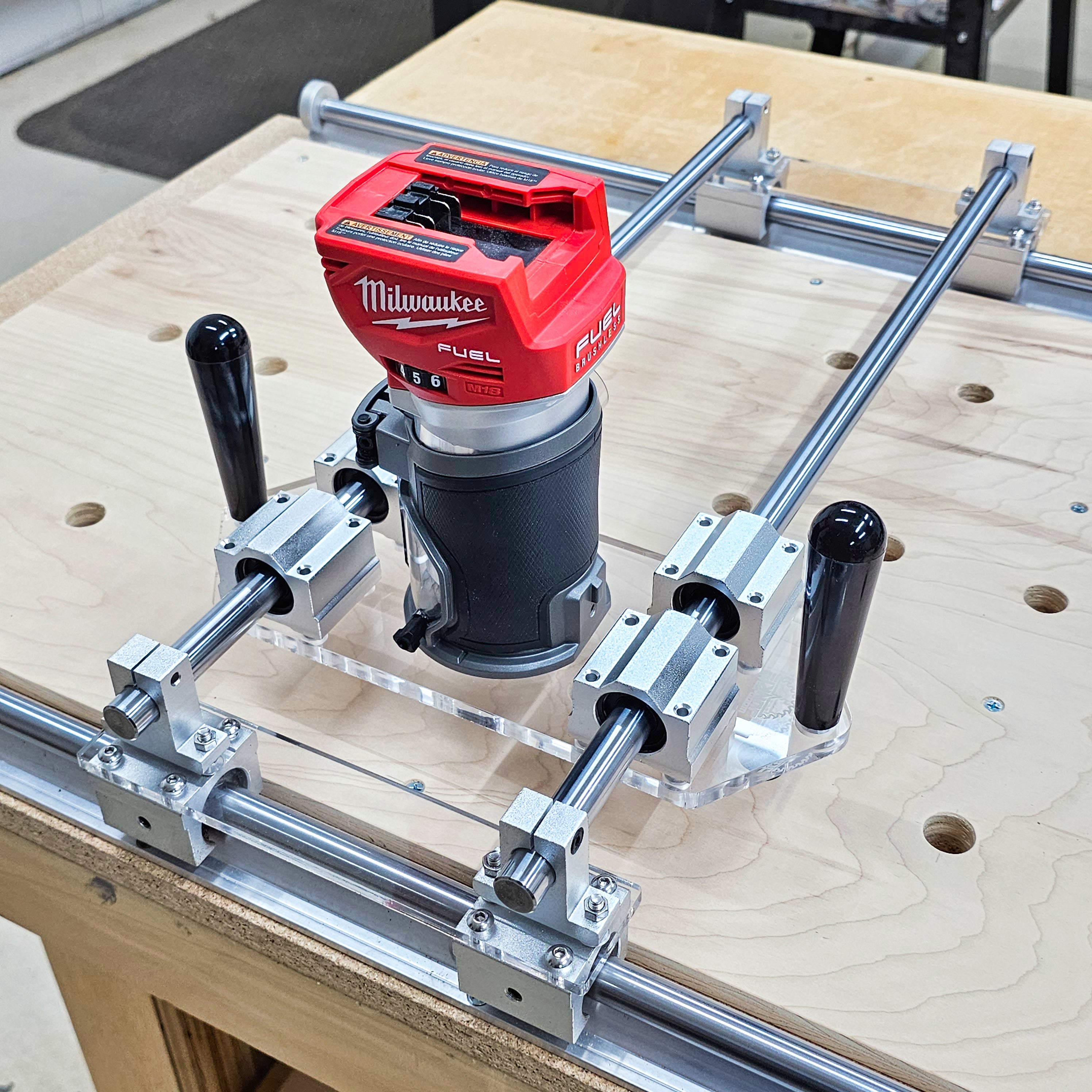

- Milwaukee M18 FUEL 2723-20

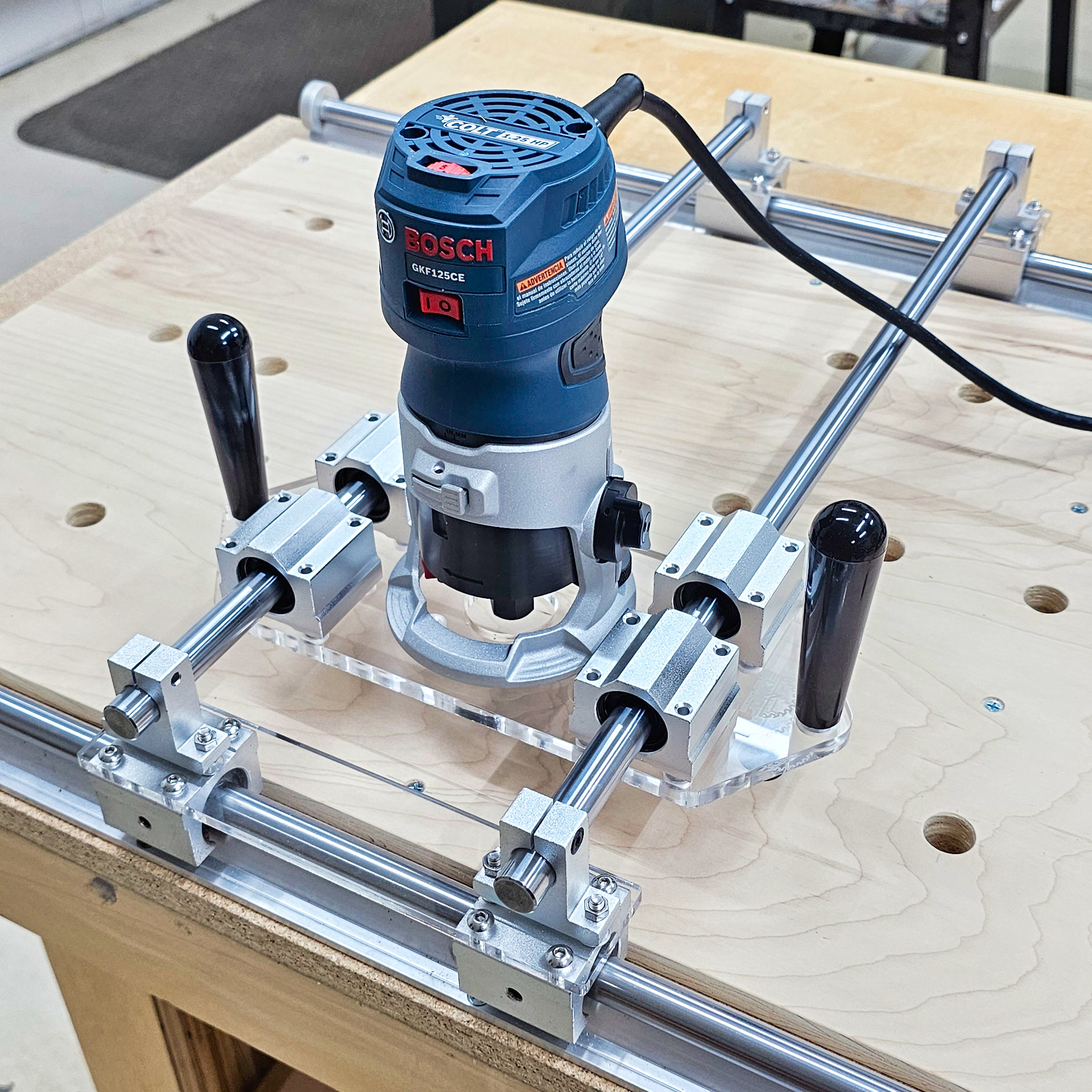

- Bosch Colt PR20EVS and GKF125CEN

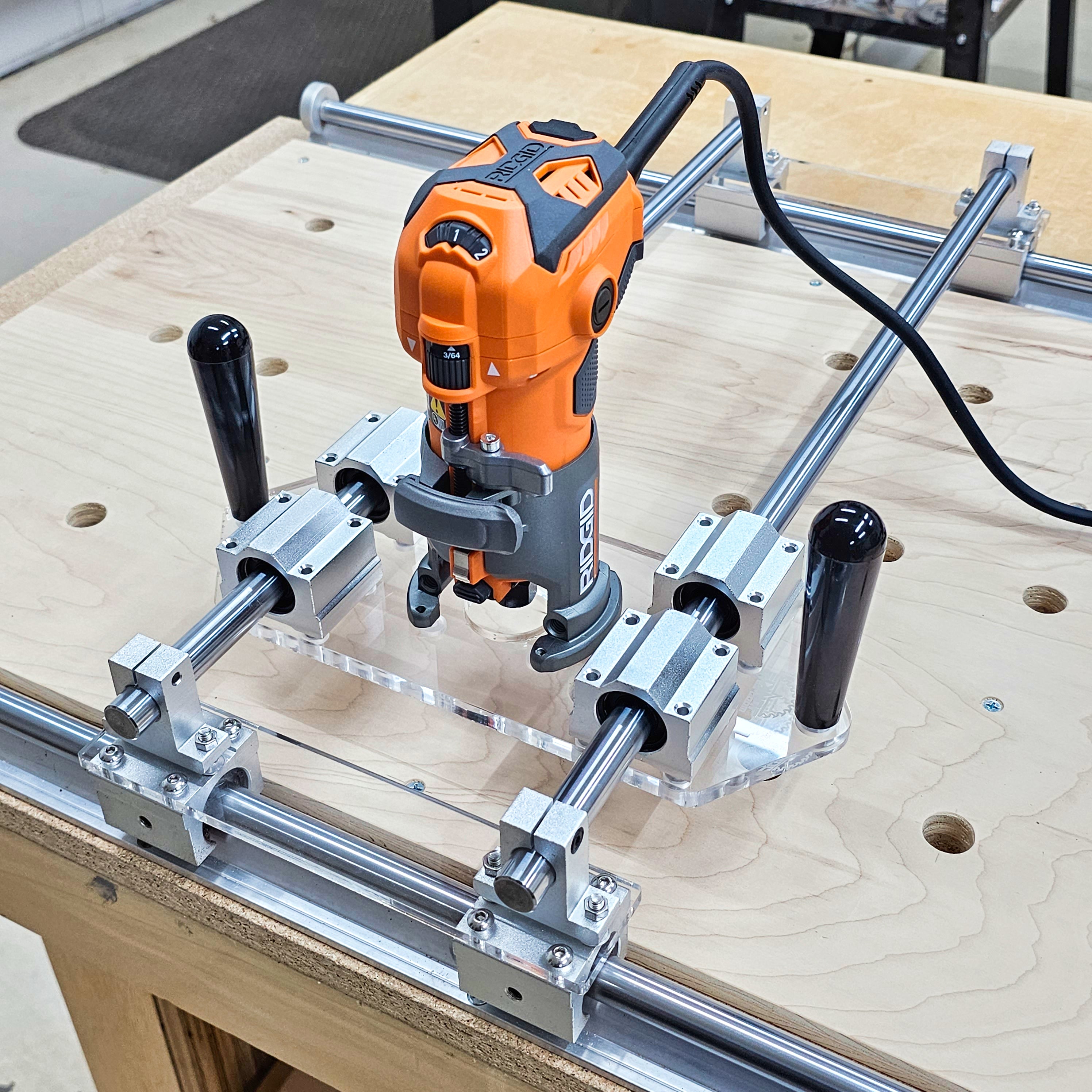

- Ridgid R24012 and R860443B

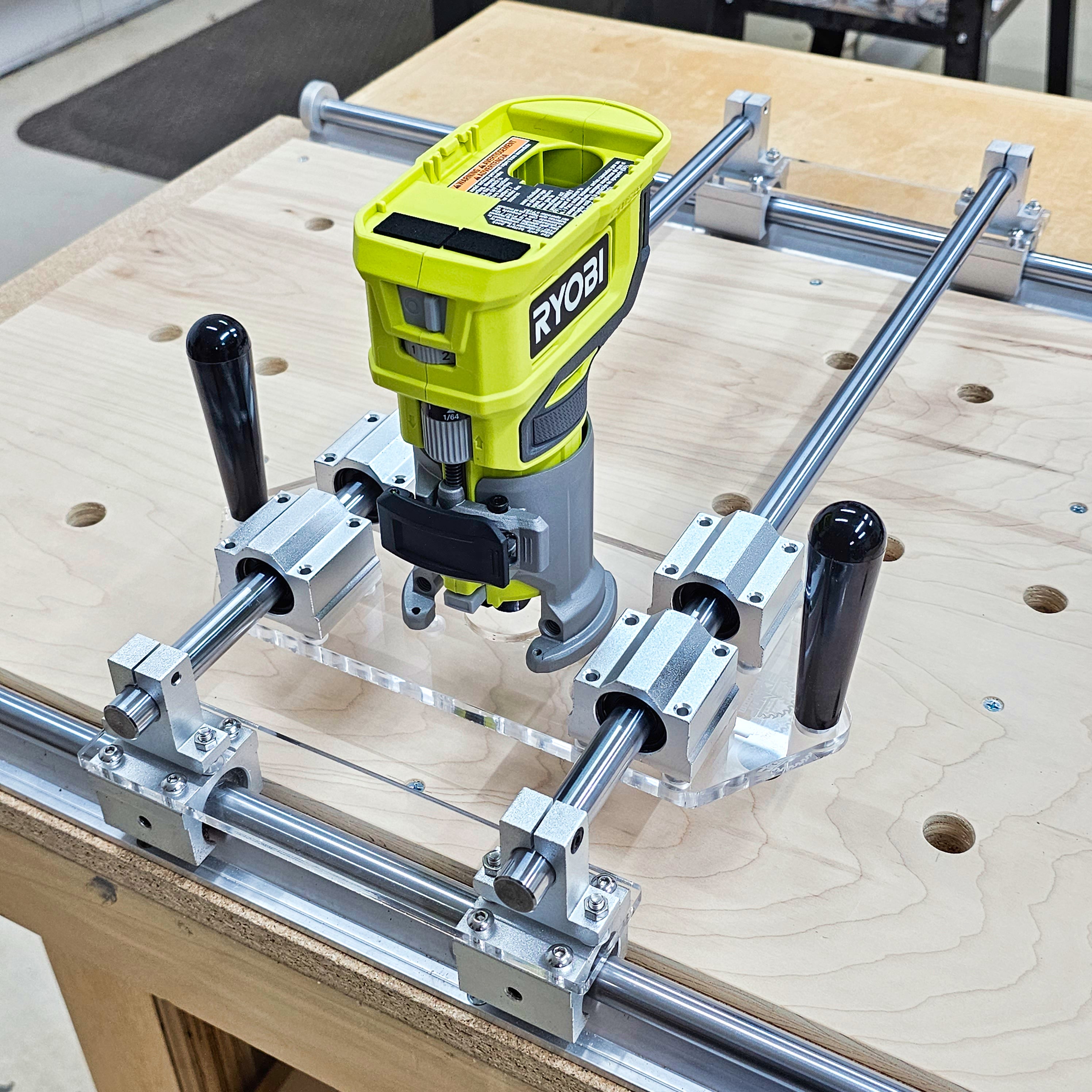

- Ryobi ONE+ P601 and PCL424B

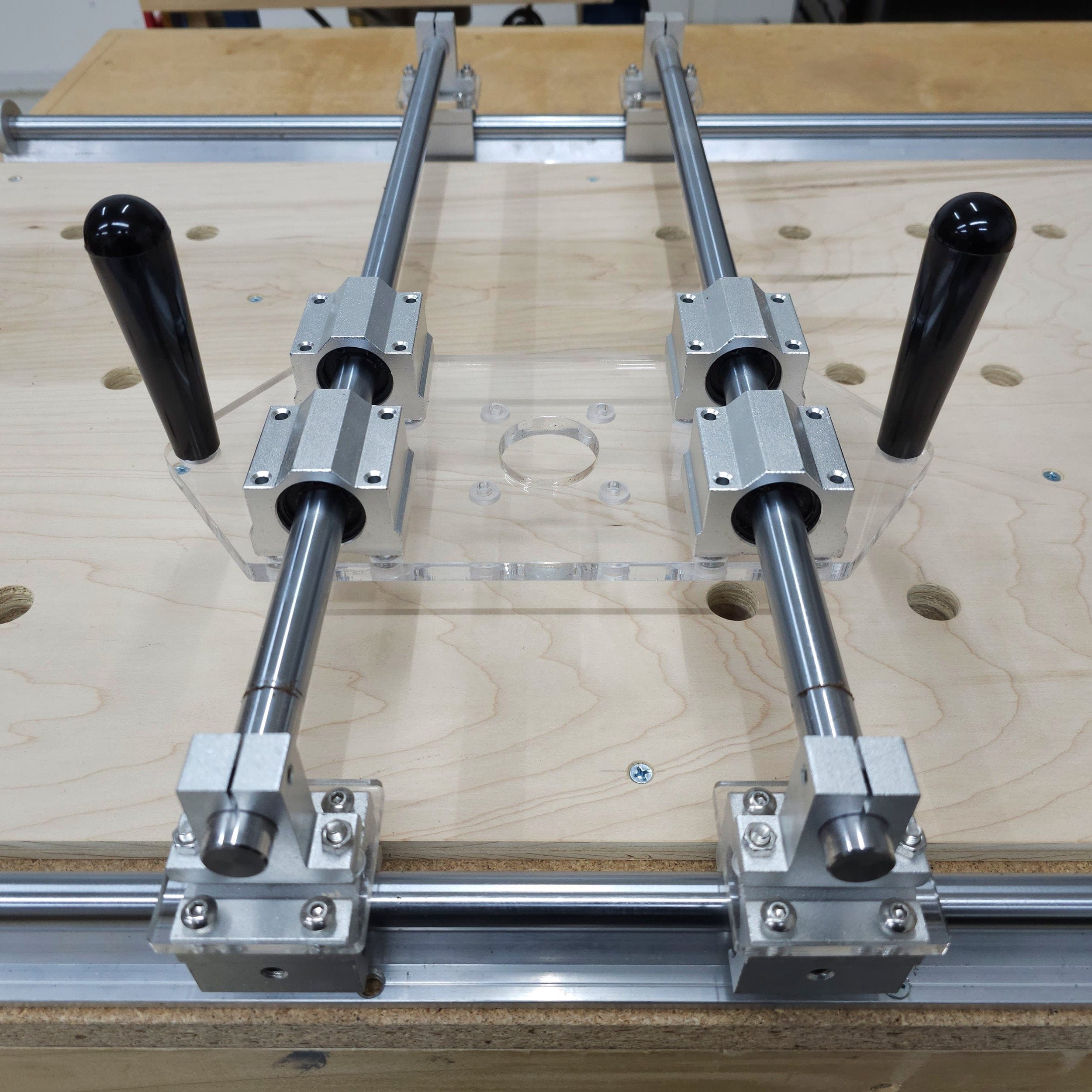

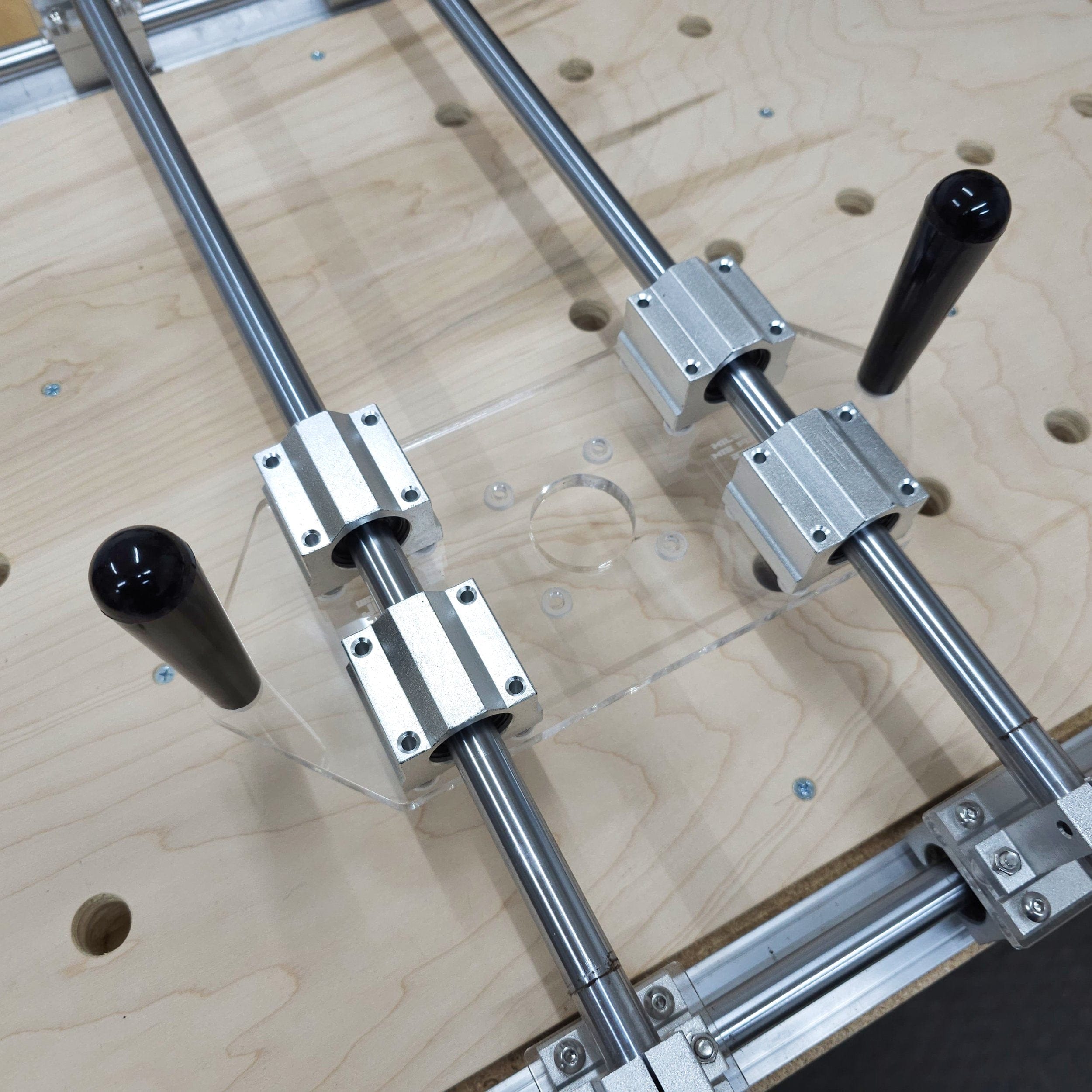

- Blank - Drill your own router mounting holes
When choosing the length of your rails and rods, make sure to add 4 inches to each end of your true cut capacity. As an example, if you’d like to flatten boards that are 24”x 12”, purchase rails that are 32 inches long and rods that are 20 inches long. This will allow your sled to slide the extra 4 inches needed on all ends. This is assuming a 1-1/4” diameter cutterhead.
Free US Shipping Over $135
Order Processing
Orders placed before 12:00 PM (MDT), Monday–Friday, are processed within 2–5 business days, provided the item is in stock. Orders placed on weekends or holidays will be processed on the next business day.
Returns
We accept returns within 30 days of purchase. Items must be new, unused, and have all original tags and packaging. A receipt or proof of purchase is required. To start a return, email us at Support@woodgrainjunkie.com
Exchanges
Click here to read our exchange policy.
FREQUENTLY ASKED QUESTIONS
Does this kit include rods, rails, and bearings?
No, since every shop is different, we give you the flexibility to choose your own rods, rails, and bearings.
We’ve linked below to recommended options to help get your search started:
SFC16 Set (Upper)
- 4x SCS16 Bearings
- 2x 16mm Rods
- 4x SBR16UU Bearings
- 2x SBR16 Rails
What type of router bit do I need?
For your router sled, you will need a surfacing router bit, also known as a spoilboard surfacing bit.
Our TrimFit Pro® Trim Router Sled Kit is meant for compact routers and surfacing bits up to a 1-1/4" diameter.
We recommend checking out our ShurCut 1" Spoilboard Surfacing Bit – 1/4″ Shank, 3 Flute, Carbide Insert.
Where is the TrimFit Pro® Trim Router Sled Kit made?
We proudly make the TrimFit Pro® Trim Router Sled Kit in our shop in Colorado, USA.
PLEASE READ BEFORE BUYING

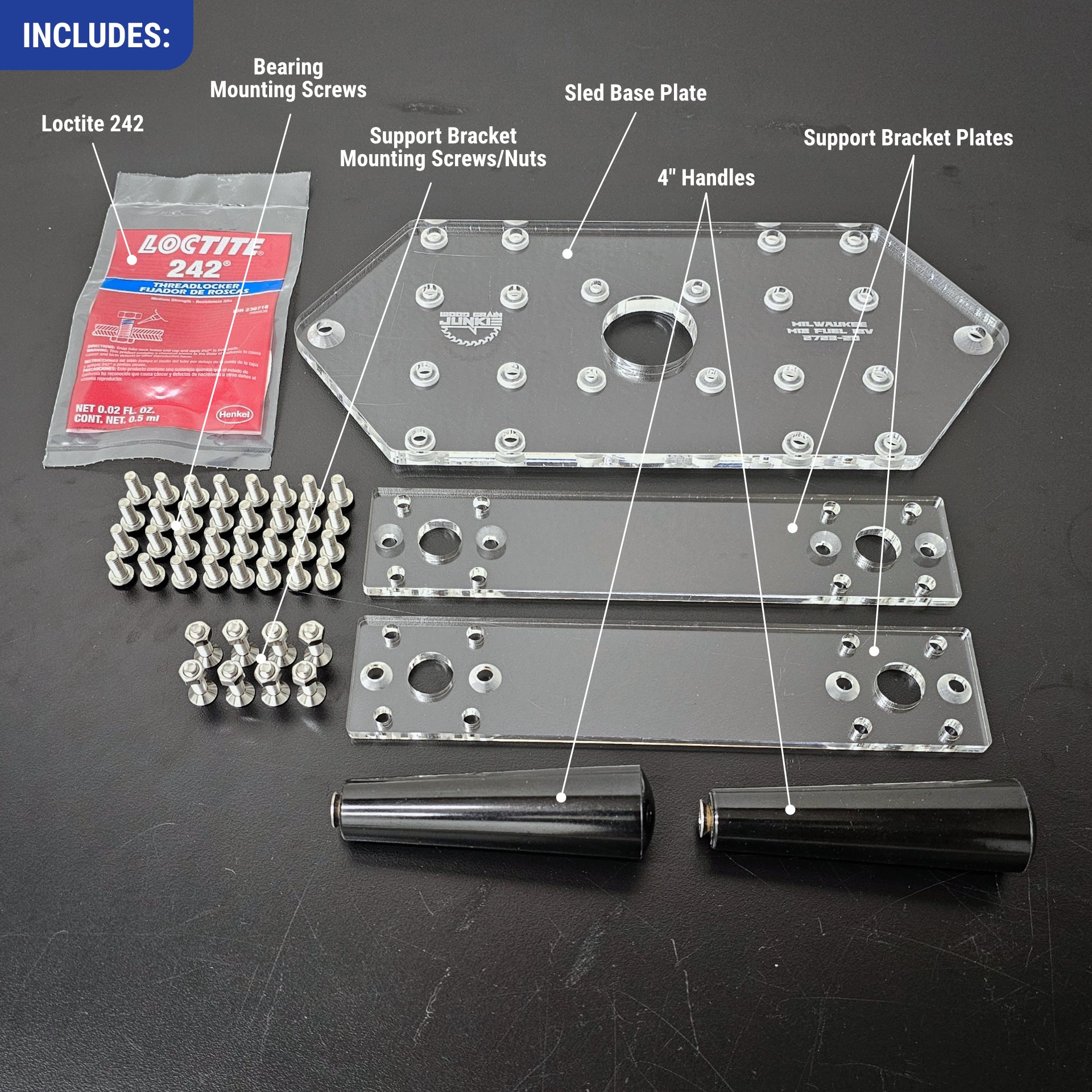

SLED KIT INCLUDES
- 1x - Sled Base Plate
- 2x - Support Bracket Mounting Plates
- 2x - 4” Handles
- 32x - Bearing Mounting Screws
- 8x - Support Bracket Mounting Screws and Nuts
- 1x - Loctite 242
ADDITIONAL PARTS REQUIRED
You must order your own rods, rails, and bearings. We’ve linked below to recommended options to help get your search started:
- 4x SCS16 Bearings
- 2x 16mm Rods
- 4x SBR16UU Bearings
- 2x SBR16 Rails
Cut Capacity Tip:
When choosing the length of your rails and rods, make sure to add 4 inches to each end of your true cut capacity. As an example, if you’d like to flatten boards that are 24”x 12”, purchase rails that are 32 inches long and rods that are 20 inches long. This will allow your sled to slide the extra 4 inches needed on all ends. This is assuming a 1-1/4” diameter cutterhead.
